Understanding where is the knock sensor located is essential for anyone diagnosing engine performance issues or planning a sensor replacement. The knock sensor plays a critical role in protecting your engine from damage caused by abnormal combustion, commonly known as engine knock or detonation. When this sensor fails or sends incorrect signals, it can lead to reduced power, poor fuel efficiency, and long-term engine damage.
This guide explains how a knock sensor works, where it is typically located, symptoms of failure, diagnostic tips, and replacement cost considerations.
What Is a Knock Sensor and Why Is It Important?
A knock sensor is an electronic sensor that detects abnormal combustion vibrations inside the engine. These vibrations occur when fuel ignites too early or unevenly in the combustion chamber. The knock sensor sends signals to the Engine Control Unit (ECU), allowing it to adjust ignition timing to prevent engine damage.
Knowing where is the knock sensor located helps technicians and vehicle owners quickly inspect, test, or replace the sensor when engine knocking issues occur.
Where Is the Knock Sensor Located?

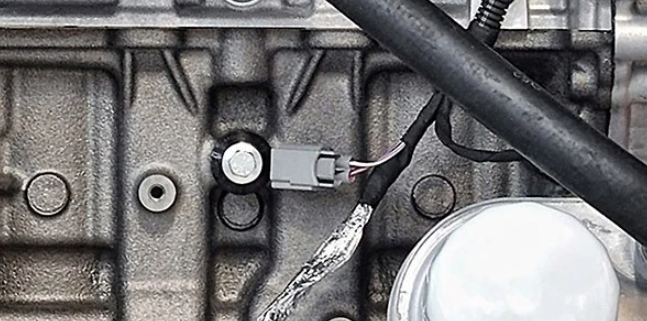

The exact answer to where is the knock sensor located depends on the engine design and manufacturer. However, most knock sensors are installed in locations that allow them to directly detect engine block vibrations.
Common Knock Sensor Locations:
- On the engine block: Most commonly mounted directly to the side of the engine block
- Between cylinder banks: Common in V-type engines
- Under the intake manifold: Often seen in modern transverse engines
- Near the cylinder head: Less common but used in some designs
Because knock sensors must accurately detect vibrations, they are bolted directly to metal engine components rather than attached to brackets or hoses.
Knock Sensor Location by Engine Type
Inline Engines
In inline four or six-cylinder engines, the knock sensor is typically located on the side of the engine block, roughly in the middle of the cylinder layout.
V-Type Engines
For V6 and V8 engines, knock sensors are often placed in the valley between the two cylinder banks, sometimes beneath the intake manifold. Some engines use two knock sensors—one for each bank.
Turbocharged Engines
Turbocharged engines rely heavily on knock sensors. These sensors are usually positioned closer to the combustion chambers for precise detection due to higher combustion pressures.
How a Knock Sensor Works
To fully understand where is the knock sensor located, it helps to know how it operates. Most knock sensors use a piezoelectric element that generates a voltage when exposed to vibration. When engine knock occurs, the vibration frequency changes, triggering the sensor to send a signal to the ECU.
The ECU then retards ignition timing to eliminate knock, protecting pistons, valves, and bearings from damage.
Symptoms of a Bad Knock Sensor
A faulty knock sensor can cause noticeable engine performance issues. Common symptoms include:
- Check Engine Light illumination
- Reduced engine power
- Poor acceleration
- Decreased fuel efficiency
- Engine pinging or knocking sounds
Understanding where is the knock sensor located makes it easier to inspect wiring and connectors when these symptoms appear.
How to Diagnose a Knock Sensor Problem
Step 1: Scan for Diagnostic Trouble Codes (DTCs)
Common knock sensor codes include P0325, P0330, and related variants.
Step 2: Inspect Wiring and Connectors
Since knock sensors are exposed to heat and vibration, wiring damage is common.
Step 3: Test the Sensor
Using a multimeter, measure resistance according to manufacturer specifications. Abnormal readings may indicate sensor failure.
Knock Sensor Replacement Cost
Replacement costs vary depending on location and engine design:
- Sensor cost: Moderate
- Labor cost: Low if easily accessible, higher if under the intake manifold
- Total cost: Can increase significantly if intake removal is required
Knowing where is the knock sensor located helps estimate labor complexity and repair cost.
Tips to Prevent Knock Sensor Issues
- Use the recommended fuel octane
- Keep engine cooling systems maintained
- Avoid aggressive driving habits
- Address engine warning lights promptly
Preventive maintenance reduces sensor stress and engine knock occurrences.
Final Thoughts
So, where is the knock sensor located? Typically, it is mounted directly on the engine block, between cylinder banks, or under the intake manifold, depending on engine design. This small but vital sensor protects your engine by detecting abnormal combustion and allowing the ECU to adjust ignition timing.
Understanding knock sensor location, symptoms, and diagnostics helps prevent serious engine damage and ensures optimal performance. For more detailed automotive sensor guides and diagnostics tips, visit Bettlink’s automotive knowledge hub.
