Every crane operator faces the same fundamental question before a lift. How much weight can this machine safely handle at this specific reach? The load chart provides the only reliable answer. That answer must be visible and legible in real time.
Operators cannot rely on memory or rough estimates. The crane’s geometry changes with every movement of the boom. The load chart accounts for these variables with precision. A display that fails to show the data clearly turns a precise operation into a dangerous guessing game.
Understanding What the Load Chart Actually Tells You
The load chart contains data derived from rigorous engineering tests. It specifies maximum capacities based on boom length, operating radius, and boom angle. It also accounts for different rigging configurations.
Leverage plays a decisive role in these calculations. Extending the boom reduces the crane’s mechanical advantage. The chart illustrates exactly where that reduction makes the crane unstable. Operators must consult these numbers constantly.
Every lift configuration is unique. Changing the boom length or the radius alters the capacity. The operator reads the chart to find the correct number for that moment. No other source of information can replace that direct reading.
How Faded and Damaged Displays Create Hazards
Crane cabs experience extreme conditions. Metal plates with printed charts get scratched by tools and debris. Sunlight bleaches the paint over time. Grease from gloves smears across the numbers.
These imperfections seem minor at first. But a small scratch over a digit can change its appearance. A 5 can resemble a 6. A 2 can look like a 3. That visual error translates directly into an incorrect lift calculation.

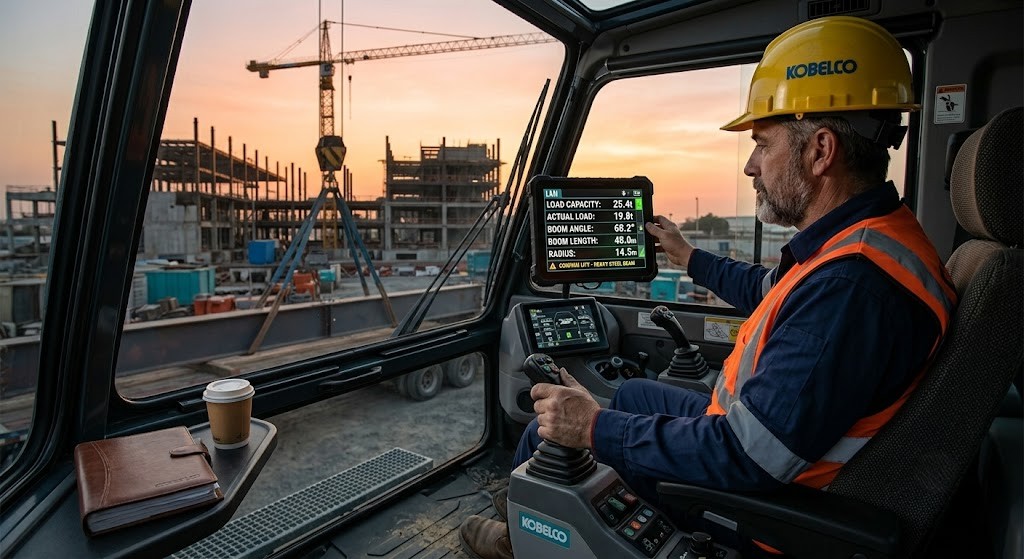

Digital screens encounter their own problems. Cracks from impacts or thermal stress obscure sections of the screen. Backlights dim, making the display unreadable in sunlight. Dead pixels cluster around crucial data fields. Any of these issues compromises the operator’s ability to work safely.
The Critical Importance of Contrast and Illumination
The inside of a crane cab is rarely an ideal viewing environment. Sunlight streams through the windows at varying angles. Reflections bounce off the glass screen. The operator’s safety glasses may have polarized coatings.
Good contrast ensures the numbers pop against the background. That contrast depends entirely on functioning display components. A dim screen or a scratched plate reduces contrast to dangerous levels.
Consider a typical afternoon shift. The sun moves across the sky, changing the glare patterns. A screen that was acceptable at 9 AM becomes illegible by 2 PM. Operators need displays that remain readable under all lighting conditions.
Operational Delays and Lost Productivity
A broken display costs more than just the repair bill. It costs time. Each time the operator cannot read the chart, the work stops.
The operator must locate a paper manual or call the supervisor. The ground crew stands idle while this search happens. If the manual is missing, someone must contact the rental yard or the shop. These interruptions add up over a single shift.
A clear, working display prevents these delays. The operator reads the chart and moves forward. Quick decisions keep the project on schedule. Protecting the display protects the workflow.
Routine Care for Load Chart Displays
Daily walkaround inspections should always include the display. The operator should examine the screen or plate carefully. Look for new scratches, fading, or cracks that were not there before.
Cleaning requires the right technique. Use a soft cloth and a gentle cleaner. Avoid anything abrasive that could scratch the surface. For metal plates, just wipe away the grease and grime.
When a metal plate shows significant fading, order a replacement. Do not try to touch up the numbers with paint. Hand-applied corrections are never as precise as factory printing. For digital screens, test the backlight and the brightness controls.
Hidden Warning Signs in Electrical Systems
A failing display often points to larger electrical concerns. If water leaks into the cab, it can damage the screen and the underlying modules. If wiring connectors are corroded, other sensors may also suffer.
The load moment indicator depends on the same electrical infrastructure. The LMI compares real-time sensor data to the load chart limits. If the display is malfunctioning, the LMI may also receive corrupted signals.
Technicians should investigate the whole system when replacing a display. They can check for frayed wires and loose connections. They can verify that the software is responding correctly. This thorough approach prevents recurring failures.
Choosing Parts That Match the Crane’s Specifications
Replacing a load chart display is not a simple swap. The new component must meet strict requirements. It must withstand vibration, heat, and humidity. It must have the correct mounting brackets and connectors.
Each crane model has unique display specifications. The wiring pinouts differ between manufacturers. The communication protocols vary as well. Installing a generic screen often results in compatibility errors.
For cranes made by Grove, seeking Grove crane parts eliminates these compatibility risks. Grove crane parts are manufactured to fit the original design perfectly. The connectors lock in without modification. The software recognizes the new screen immediately. Grove crane parts also come with the appropriate brightness and contrast ratings for outdoor use.
Using non-standard components can introduce new problems. The screen may flicker or display error codes. It might fail completely after a few days of vibration. These outcomes waste time and money. Sticking with manufacturer-grade parts is the smarter choice.
Teaching Operators to Interpret Chart Data Correctly
Readable displays are only half the equation. Operators must know how to interpret what they see. Training programs should cover both structural limits and stability limits. They should also address deductions for rigging and hook blocks.
The chart provides a gross capacity number. The operator must subtract the weight of the equipment. This step is easy to forget under pressure. Regular practice reinforces the correct procedure.
Supervisors should conduct spot checks. Ask an operator to walk through a recent lift. Have them show the exact line on the chart they referenced. This exercise confirms their understanding of the display.
Staying Current with Software Revisions
Digital load chart displays are essentially computers. They run firmware that controls how data appears. Manufacturers occasionally release revisions to improve accuracy or fix glitches.
Ignoring these updates creates risks. The display might freeze during a critical lift. It could show an outdated capacity that does not reflect a recent engineering change. Staying current is a simple preventive measure.
Contact your equipment dealer annually. Ask about available software patches. Have a certified technician handle the installation. They can also recalibrate the sensors to match the new software.
Making Safety a Daily Priority
The load chart establishes the boundaries of safe crane operation. It is not a suggestion or a guideline. It is the definitive source of truth for the machine’s capability. Obscuring that truth is an unacceptable risk.
No operator should ever guess about lifting capacity. Guessing invites disaster. A clear, intact display eliminates the need to guess. It provides certainty in every situation.
Maintain the display with the same rigor as the engine or the hydraulic system. Clean it, inspect it, and repair it promptly. When replacements are necessary, use reliable components like Grove crane parts to restore full functionality. Clear visibility leads to sound decisions. Sound decisions protect the crew and complete the job without incident.
